VEVOR Heavy Duty Arbor Press 3 Ton, Ratchet Leverage Arbor Press with Handwheel, Manual Desktop Metal Arbor Press 21.5 Inch Max. Working Height
Highlights:
1.Easy Operation & 3 Ton: This arbor press attachment can apply 3 ton of force to facilitate installation, removal, and pressing of items by lowering the steel ram through ratcheted leverage and a convenient handwheel. Max. Work Height: 11.02 in / 280 mm.
2.Premium Iron Material: Made of high quality iron material, this 3 ton arbor press features simple structure, stability and reliability, offering incredible strength and rigidity needed for tougher jobs.
3.Slotted Table-Plate: The hand press comes with an anvil plate, which measures 6.69 in / 170 mm diameter. It is slotted for various application and can be moved and replaced if you have other working demand.
4.Strengthened Base: Designed with thickened and solid base, pre-drilled for mounting on either a bench or pedestal to keep the rivet press sturdy, to ensure the smooth and efficient work.
5.Various Application: This arbor press 3 ton load capacity is suitable for riveting, squeezing, punching, bending, and other pressing applications with different molds, widely used in assembly and repair industries.
Details:
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
1.Easy Operation & 3 Ton: This arbor press attachment can apply 3 ton of force to facilitate installation, removal, and pressing of items by lowering the steel ram through ratcheted leverage and a convenient handwheel. Max. Work Height: 11.02 in / 280 mm.
2.Premium Iron Material: Made of high quality iron material, this 3 ton arbor press features simple structure, stability and reliability, offering incredible strength and rigidity needed for tougher jobs.
3.Slotted Table-Plate: The hand press comes with an anvil plate, which measures 6.69 in / 170 mm diameter. It is slotted for various application and can be moved and replaced if you have other working demand.
4.Strengthened Base: Designed with thickened and solid base, pre-drilled for mounting on either a bench or pedestal to keep the rivet press sturdy, to ensure the smooth and efficient work.
5.Various Application: This arbor press 3 ton load capacity is suitable for riveting, squeezing, punching, bending, and other pressing applications with different molds, widely used in assembly and repair industries.
Details:
3 Ton Arbor Press with Ratchet Leverage
280 mm Work Height & 160 mm Throat Depth & Flexible Handwheel
This listing is about 3 ton arbor press, made of high quality carbon steel with simple structure and good quality. Equipped with a hand wheel and a ratcheted lever to lower the ram onto the object, this leather press is easy to operate without fatigue. Perfect for riveting, squeezing, punching, bending, and other pressing applications.
- Easy Operation & 3 Ton
- Premium Iron Material
- Slotted Table-plate
- Strengthened Base
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service

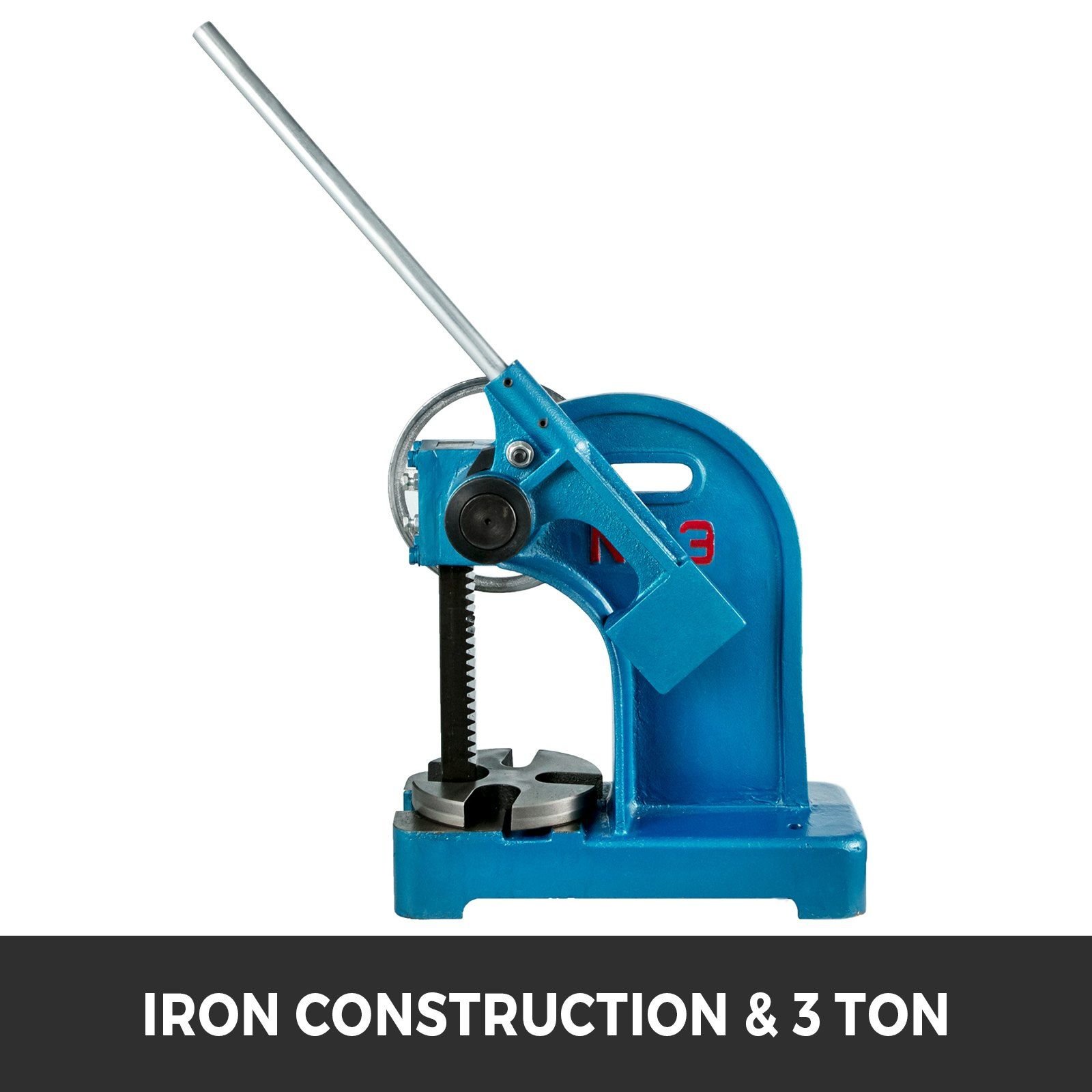

Iron Construction & 3 Ton
This metal stamping press is constructed of high strength cast iron, integral moulding, allowing for the rugged strength needed for tougher jobs, delivering 3 ton of pressure. It features good resistance to corrosion and rust.

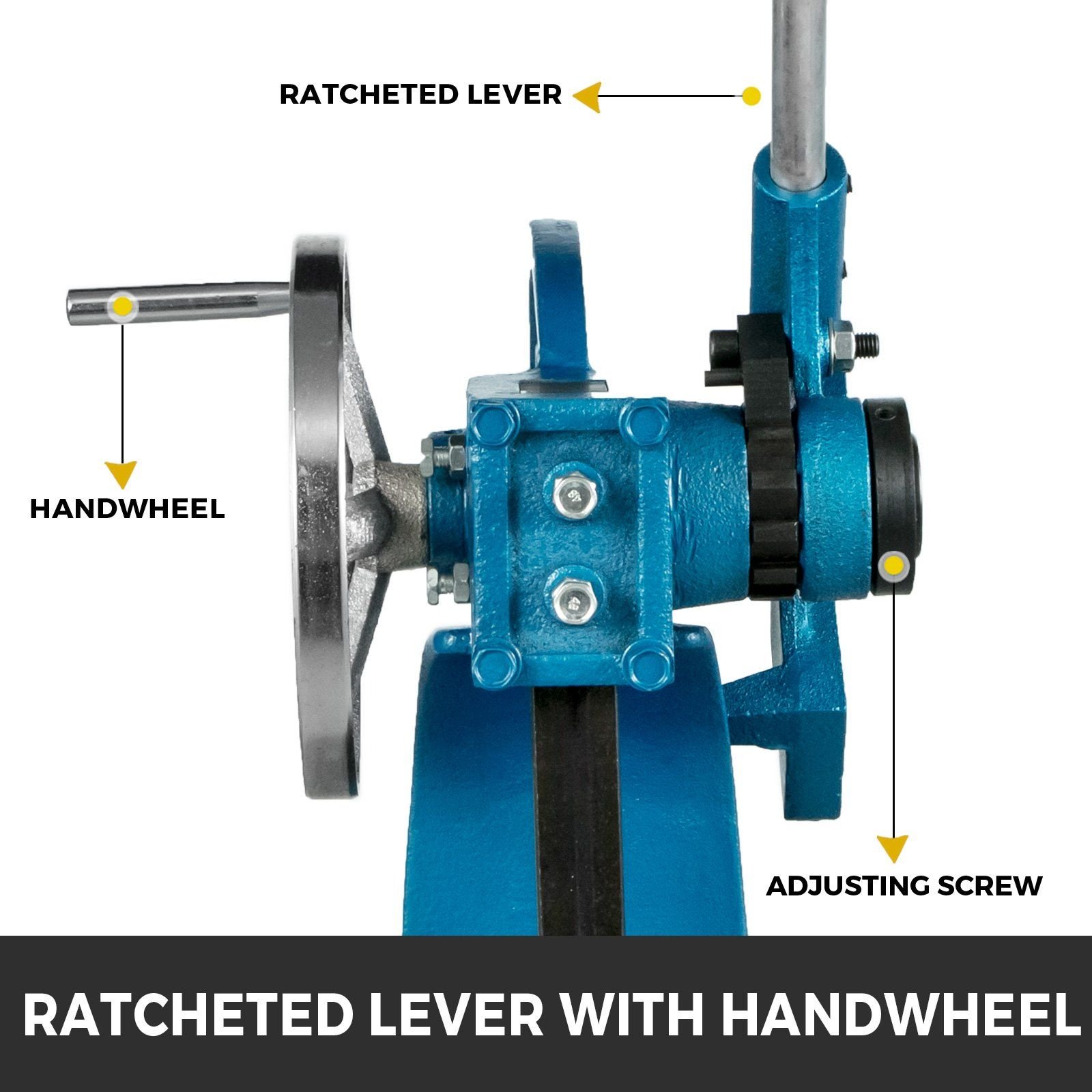

Ratcheted Lever with Handwheel
Easy to operate this hard drive destroyer by a steel ratcheted lever, non-slip and safe. Equipped with a hand wheel to perform light and quick press work. Energy saving.
Ram with Pinions
Ram dimensions: 1.5 x 1.5 x 17.32in. Iron ram is heat treated and the pinions are even, solid, durable and anti-wear. With the aid of a magnetic insert, punches or tools can be added to the end of the ram.
Fixed Holes Plate
The mental press is equipped with a slotted table plate with 4 fixed holes. Plate diameter: 6.69in/170mm. The arbor press plate can be replaced or rotated to one of its 4 openings.
Solid & Thickened Base
This manual press is designed with solid base which is pre-drilled with 2 holes for mounting, making this compact and small press have a great balance and keep sturdy.
Wide Application
This hard drive shredder is a common tool for factory workshop, mainly used to press the bearing and the work piece with hard fitting. Perfect for assembly and repair fields.
Specifications
- Capacity: 3 Ton
- Type: Ratcheted
- Material: Cast Iron
- Max. Work Height: 11.02 in / 280 mm
- Ram Dimensions: 1.5 x 1.5 x 17.32 in / 38 x 38 x 440 mm
- Plate Diameter: 6.69 in / 170 mm
- Throat Depth: 6.3 in / 160 mm
- Overall Size: 17 x 9.6 x 21.8 inch / 43.2 x 24.6 x 55.4 cm
- Item Weight: 122 lbs / 55 kg
- Item Dimensions: 17 x 9.6 x 21.8 in / 43.2 x 24.6 x 55.4 cm
Package Content
- 1 x 3 Ton Arbor Press
- 1 x Kit of Accessories
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
3 Ton Arbor Press with Ratchet Leverage
280 mm Work Height & 160 mm Throat Depth & Flexible Handwheel
This listing is about 3 ton arbor press, made of high quality carbon steel with simple structure and good quality. Equipped with a hand wheel and a ratcheted lever to lower the ram onto the object, this leather press is easy to operate without fatigue. Perfect for riveting, squeezing, punching, bending, and other pressing applications.
- Easy Operation & 3 Ton
- Premium Iron Material
- Slotted Table-plate
- Strengthened Base
Iron Construction & 3 Ton
This metal stamping press is constructed of high strength cast iron, integral moulding, allowing for the rugged strength needed for tougher jobs, delivering 3 ton of pressure. It features good resistance to corrosion and rust.
Ratcheted Lever with Handwheel
Easy to operate this hard drive destroyer by a steel ratcheted lever, non-slip and safe. Equipped with a hand wheel to perform light and quick press work. Energy saving.
Ram with Pinions
Ram dimensions: 1.5 x 1.5 x 17.32in. Iron ram is heat treated and the pinions are even, solid, durable and anti-wear. With the aid of a magnetic insert, punches or tools can be added to the end of the ram.
Fixed Holes Plate
The mental press is equipped with a slotted table plate with 4 fixed holes. Plate diameter: 6.69in/170mm. The arbor press plate can be replaced or rotated to one of its 4 openings.
Solid & Thickened Base
This manual press is designed with solid base which is pre-drilled with 2 holes for mounting, making this compact and small press have a great balance and keep sturdy.
Wide Application
This hard drive shredder is a common tool for factory workshop, mainly used to press the bearing and the work piece with hard fitting. Perfect for assembly and repair fields.
Package Content
- 1 x 3 Ton Arbor Press
- 1 x Kit of Accessories
Specifications
- Capacity: 3 Ton
- Type: Ratcheted
- Material: Cast Iron
- Max. Work Height: 11.02 in / 280 mm
- Ram Dimensions: 1.5 x 1.5 x 17.32 in / 38 x 38 x 440 mm
- Plate Diameter: 6.69 in / 170 mm
- Throat Depth: 6.3 in / 160 mm
- Overall Size: 17 x 9.6 x 21.8 inch / 43.2 x 24.6 x 55.4 cm
- Item Weight: 122 lbs / 55 kg
- Item Dimensions: 17 x 9.6 x 21.8 in / 43.2 x 24.6 x 55.4 cm
